Toilet Paper Roll Rewinding Machine , PLC Small Scale Paper Making Machine Maxi Rolls

Product Categories
Fujian Xinyun Machinery Development Co., Ltd.
Contact Now

Toilet Paper Roll Rewinding Machine , PLC Small Scale Paper Making Machine Maxi Rolls

Brand Name : Xinyun

Certification : CE

Model Number : XY-TQ-B

Place of Origin : Quanzhou,Fujian

MOQ : 1

Price : 21,000-36,000USD

Payment Terms : T/T, Western Union

Supply Ability : 200sets/year

Delivery Time : 70-80 days

Packaging Details : Wooden Pallet

Jumbo Roll Max Width : 2800mm (Other Size Can Be Specified)

Jumbo Roll Inner Diameter : 3inches(76.2mm) (Other Size Can Be Specified)

Jumbo Roll Diameter : 1200mm(Other Size Can Be Specified)

Perforation Distance : 4 Anvil Blades(115mm)(Other Size Can Be Specified)

Finished Product Diameter : 90~280mm

Finished Product Core Diameter : 38~76mm

Production Speed : 0~230m/Min

Program Controller : PLC(Invt)

Unwind Stands : 2 Stands(Need to Be Specified)

Transport Package : Wooden Pallet

Contact Now

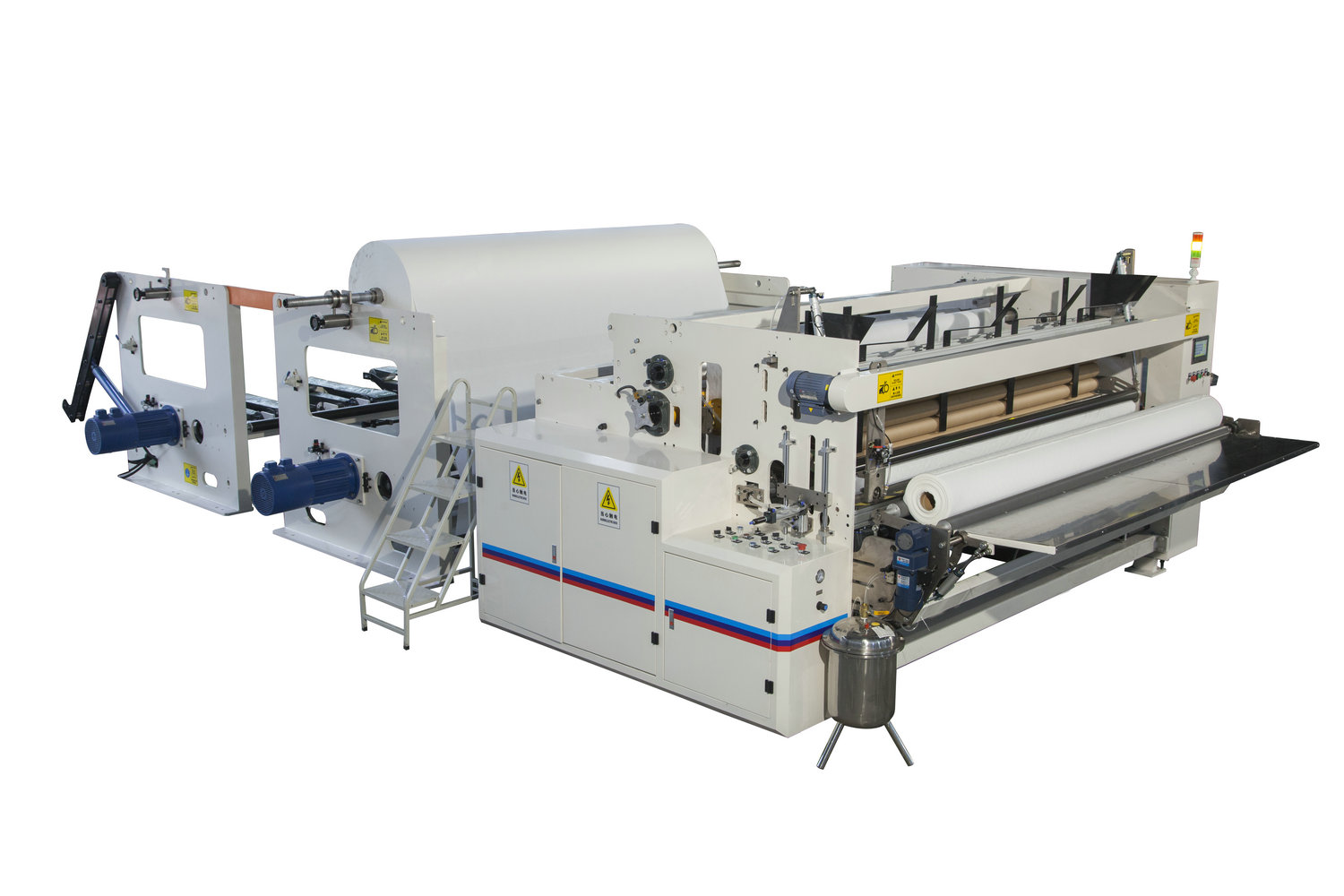

XY-TQ-B Full Automatic Mini Small Scale Toilet Tissue Paper Roll Rewinding Machine

Automatic Wrapper Type High Speed Toilet Paper /Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Functions and Features
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18 mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
6. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
7. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Video Link: https://youtu.be/yy_CHnOqlqs

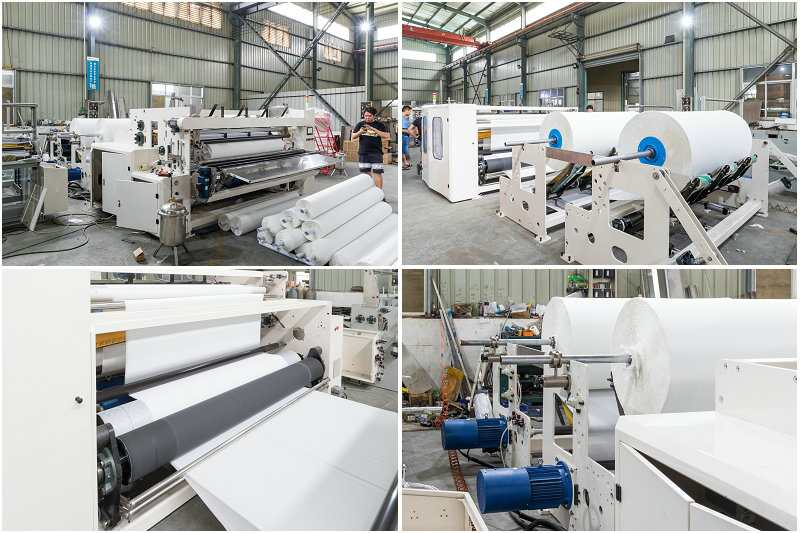

Details Images
Model XY-TQ-B Automatic rewinding toilet roll paper making machine
Jumbo Roll Max Width 2800mm (Other size can be specified)
Jumbo Roll Diameter Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter 3inches(76.2mm) (Other size can be specified)
Perforation Distance 4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter Φ90~φ280mm
Finished Product Core Diameter φ38~φ76mm
Program Controller PLC( INVT)
Unwind Stands 2 Stands(Need to be specified)
Production Speed 0~230m/min
Pneumatic System 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)

Toilet Paper Roll Rewinding Machine , PLC Small Scale Paper Making Machine Maxi Rolls

Part of Machine

Toilet Paper Roll Rewinding Machine , PLC Small Scale Paper Making Machine Maxi Rolls

After Sales Servies
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours.
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a USB dish of Operation Video with machine,it will help customer to work the machine easy.

After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
Company Information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to send an "Inquiry" to get more details!
